We created a new set of icons for Cura. These icons had to be reverted though because they weren't working out in the interface for the last release yet. This unreverts them, basically adding them back hoping that we'll get them fixed in time for the next release. Contributes to issue CURA-8342. Revert "Revert "Fix merge conflict"" This reverts commit bb20e3307f43edc1ff53cb154d2351ddfe39e158. Revert "Revert "Merge pull request #9716 from Ultimaker/CURA-8010_new_icons"" This reverts commit 70e4e9640e561e18a12870f30c905203ce8ccee7. Revert "Revert "Fix typo in icon name"" This reverts commit 38ce22ba7c3f40b971bc6e1e0a8e776ca9d51512. Revert "Revert "Add list for deprecated icons"" This reverts commit 119a957e7f978dbf1ddbcb3b0005bf38e8fed943. Revert "Revert "Add Function icon"" This reverts commit 760726cf0bb953bb1b0fc277b448f419d4bd2544. Revert "Revert "Switch out inherit icon"" This reverts commit 26afff609381e2004d194c280f504b6226859bd3. Revert "Revert "Merge branch 'CURA-8205_Introduce_new_icons_in_Cura' of github.com:Ultimaker/Cura"" This reverts commit 6483db3d47ee052c1a966cdee3af7190577a5769. Revert "Fix incorrect icons" This reverts commit 02a4ade2a50a943ff36fd4895bdc9261cf2133eb.
Cura

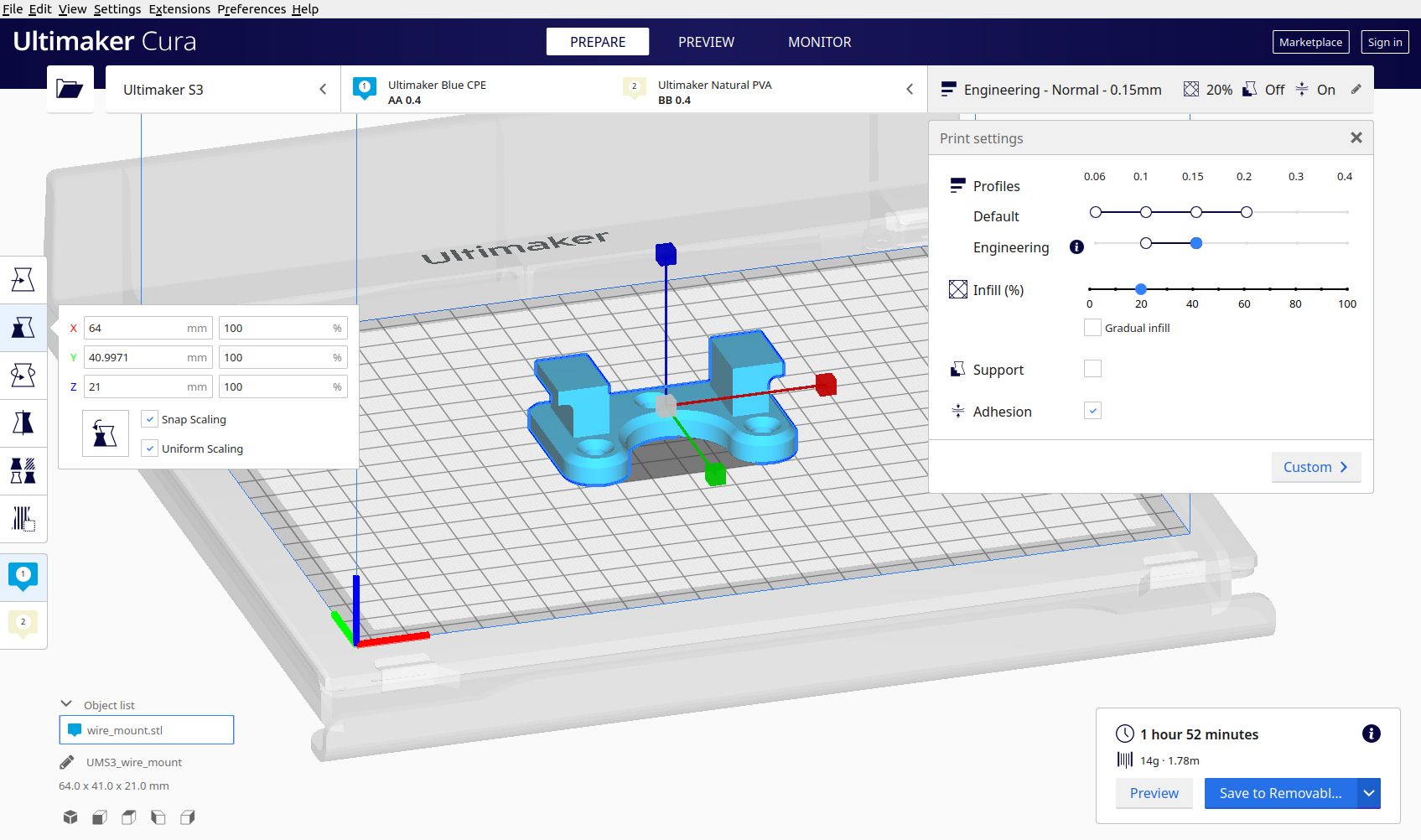

Ultimaker Cura is a state-of-the-art slicer application to prepare your 3D models for printing with a 3D printer. With hundreds of settings and hundreds of community-managed print profiles, Ultimaker Cura is sure to lead your next project to a success.
Logging Issues
For crashes and similar issues, please attach the following information:
- (On Windows) The log as produced by dxdiag (start -> run -> dxdiag -> save output)
- The Cura GUI log file, located at
%APPDATA%\cura\<Cura version>\cura.log(Windows), or usuallyC:\Users\\<your username>\AppData\Roaming\cura\<Cura version>\cura.log$USER/Library/Application Support/cura/<Cura version>/cura.log(OSX)$USER/.local/share/cura/<Cura version>/cura.log(Ubuntu/Linux)
If the Cura user interface still starts, you can also reach this directory from the application menu in Help -> Show settings folder
For additional support, you could also ask in the #cura channel on libera.chat. For help with development, there is also the #cura-dev channel.
Dependencies
- Uranium Cura is built on top of the Uranium framework.
- CuraEngine This will be needed at runtime to perform the actual slicing.
- fdm_materials Required to load a printer that has swappable material profiles.
- PySerial Only required for USB printing support.
- python-zeroconf Only required to detect mDNS-enabled printers.
For a list of required Python packages, with their recommended version, see requirements.txt.
This list is not exhaustive at the moment, please check the links in the next section for more details.
Build scripts
Please check out cura-build for detailed building instructions.
If you want to build the entire environment from scratch before building Cura as well, cura-build-environment might be a starting point before cura-build. (Again, see cura-build for more details.)
Running from Source
Please check our Wiki page for details about running Cura from source.
Plugins
Please check our Wiki page for details about creating and using plugins.
Supported printers
Please check our Wiki page for guidelines about adding support for new machines.
Configuring Cura
Please check out Wiki page about configuration options for developers.
Translating Cura
Please check out Wiki page about how to translate Cura into other languages.
License
Cura is released under the terms of the LGPLv3 or higher. A copy of this license should be included with the software.
